The ChargeBox3 mobile device charging locker system
The ChargeBox 3 Locker System
The most reliable, robust and secure charging system
ChargeBox 3, our 3rd generation system, provides a world-class charging service with:
- Device security fully guaranteed
- Stress-free, fast charging for users
- Easy to use 'Connect and Lock' system
- Sponsorship opportunities through full vinyl wraps, decal placement and video content
- Real-time management with analytics and fault detection.
The Ultimate Lock and Leave Charging Solution
ChargeBox 3 - Overview
Having charged over 30 million devices in 15 years of operating, ChargeBox® is the most popular, most trusted out of home charging service in the world.
- Free standing unit
- Six lockers with patented SmartLock key system
- Charges mobile devices, small tablets and laptops
- USB 3.1 Power delivery Fast Charge option for even faster charging of compatible devices
- 16 different cables, or 20 cables with Fast Charge option
- 19" main screen and 7" control/guide screen

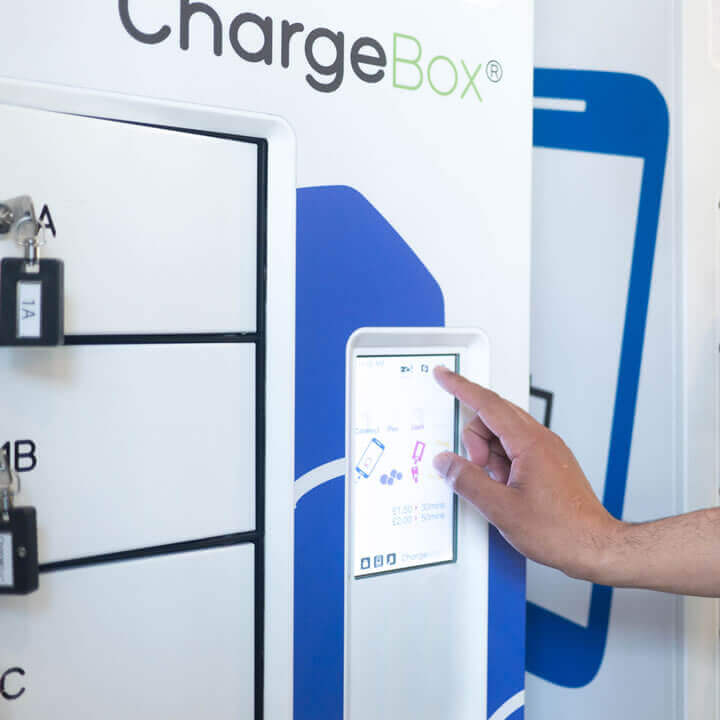

- Multi-language touchscreen interface
- Real-time monitoring to ensure availability
- Full exterior branding available.
- TECH SPEC
Each mobile device charging station is secured by our patented SmartLock key system. With ChargeBox’s management packages, ChargeBox guarantees the safety and security of every device.
Ease of Use

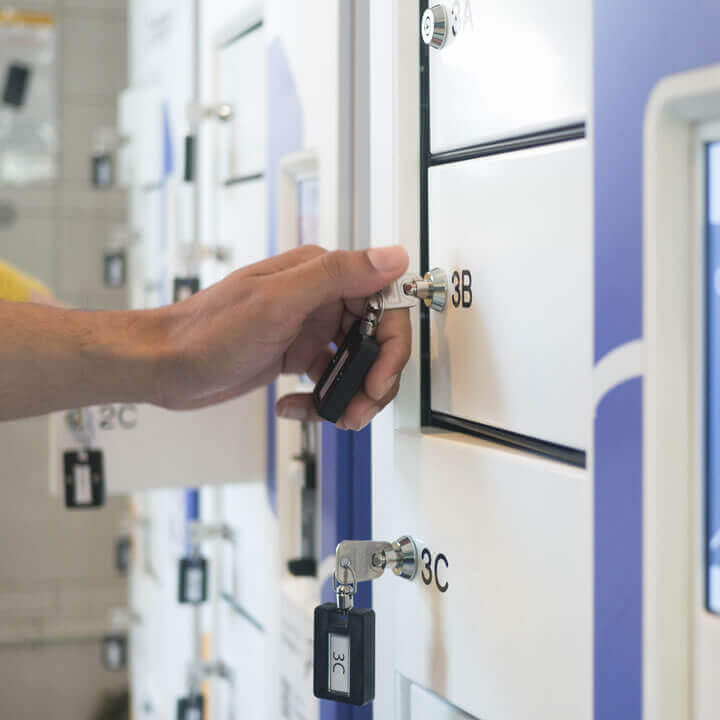

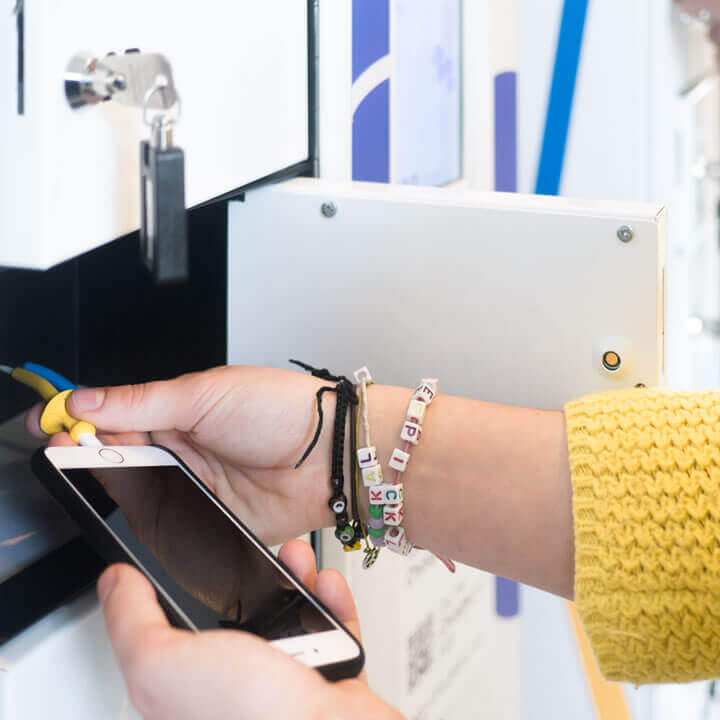

SmartLock detects a device before enabling a user to secure the door. The user can retrieve their device at any time using their key, regardless of a power-cut or system malfunction.
Best Charging Technology
Our standard USB 2.0 power envelope charges iPhones 50% faster than the iPhone stock charger. Our leading edge Fast Charging* power option will charge the latest iPhones to 50% in just 30 minutes, safely within industry standards.
* ChargeBox were the first to market with public Fast Charge device charging solutions.
ChargeBox's internet connected systems offer clients the ability to measure ROI, and ensure availability can be managed.
Six chamber mobile device charging
station secured by patented
SmartLock key system
Anchor apertures available to fix the station to the floor.
Alternatively, a CE certified anti-topple floor plate finished matt black (RAL 9005 matt) can be provided.
Dimensions & Weight
- H1801 x W575 X D427mm
Floor plate footprint measures 775 (D)
x 750mm (W) x 5mm (H). Total cabinet
and floor plate weight of 117Kg
110V (60Hz), 220V (60Hz), or 240V (50 Hz) with fused 3A supply.
Power supply rating: 150W
- Fast-Charge technology option
power supply rating: 400W
Typical: 90W (includes 2-3 tablets charging)
Max: 120W with 6 lockers on full charge
- Fast-Charge technology:
Traffic White finish (RAL 9016)
Full exterior branding option with 3M vinyl wrap
- Front panel: 1.2mm zintec steel
- Side and rear panels: 1.5mm aluminium
Computer & User Interface Panel
- ARM-based single board Computer controlling 7” capacitive-layer touch display and HD LCD
- Multi-language touchscreen interface provides user instructions, help and
- Multiple USB charging hubs, supporting management information and upgradable
- Proprietary SmartLock controller
Additional language development
Six SmartLock chambers charging one device in each, with multiple USB connectors fixed
USB charging cables
- 16 qty manufacturer grade cables
over-moulded with ChargeBox XTEN
- Apple, USB-C and microUSB cables
charging at 2.1Amp / 10W
- Fast-charge USB-PD technology option
supporting next generation smartphones,
tablets and laptops
- All fast-charge USB-PD envelopes
supported: 15W / 27W / 45W / 60W
- 19” HD LCD controlled via software
- Content remotely manageable via ChargeBox online system
Ethernet to a Local Area Network
3G / 4G connection and data kit available.
Supporting remote fault detection, online performance statistics and behaviour
The ChargeBox 3 Branded Wrap option
The ChargeBox 3 offers branding and sponsorship opportunities with custom vinyl wraps and LCD displays with optional remote content management.

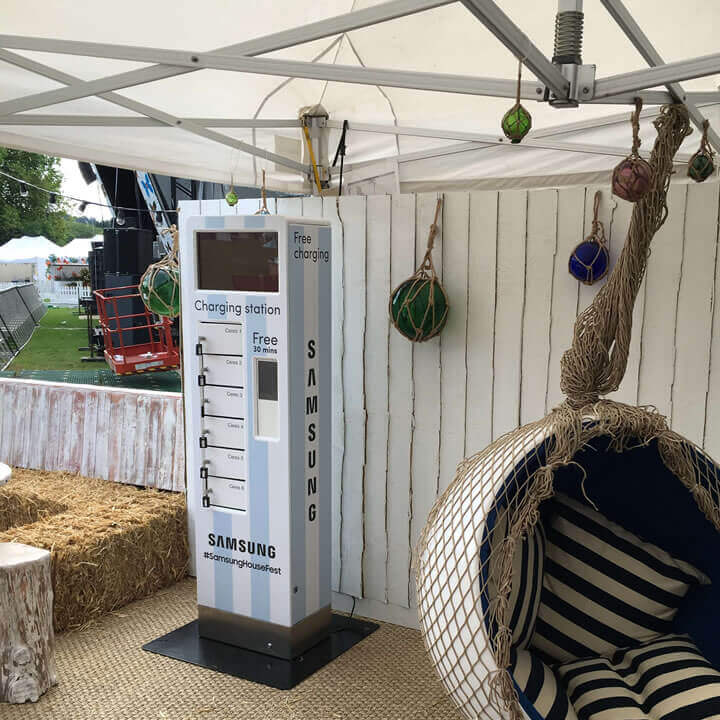

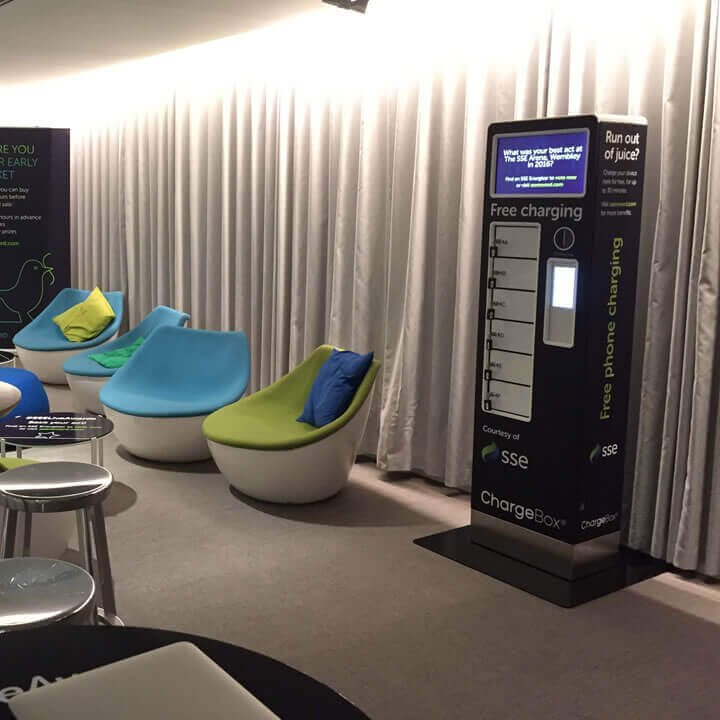

Branded wrap examples
Frequently Asked Questions
What devices can ChargeBox 3 charge?
All of our ChargeBox solutions have Apple Lightning, Micro USB and USB Type C cables fitted to charge all of the latest devices.
What infrastructure do I need to install a ChargeBox 3?
Each ChargeBox 3 requires a 13amp socket no further than one metre from the unit. If sockets are situated further than one metre away you must provide a suitable extension lead.
Can the ChargeBox 3 be customised with my company branding?
Each ChargeBox ‘lock and leave’ locker solution can be fully customised with various types of vinyl wraps. The ChargeBox 3 offers branding and sponsorship opportunities with custom vinyl wraps and LCD displays with optional remote content management.
Why do you provide a managed service for permanent installations?
Our managed service is vital to ensure that we deliver an end-to end, hassle free service. ChargeBox will take care of every aspect of your charging solution so that you don’t have to.
Do you offer a key pad / pin system?
We quickly discovered that it is impossible to provide a secure service when part of the security is left to the user. Our experience shows that PIN codes can be easily predicted, and seen from afar. We believe that a high-quality lock and key system backed by a complete audit trail is the most secure solution. It is also the easiest to use system from a customer perspective as well as the most hassle-free. We are extremely proud of our proven security track record across our estate.
What happens if a customer loses their key?
On installation of your ChargeBox you will be provided with a set of Emergency Keys which can be used to help a customer retrieve their device in the unlikely event of the customer losing their key. ChargeBox have a device retrieval process which should be followed in this eventuality.
Does the ChargeBox 3 have to be inside?
The ChargeBox 3 can be placed outside providing it is covered to prevent any exposure to wind or rain.
What other products does ChargeBox offer?
ChargeBox has both ‘lock and leave’ locker solutions as well as ‘stay and charge’ table top and integrated solutions available for hire or purchase. Please view our products page to find the right ChargeBox for your needs.
What are the dimensions of the ChargeBox 3?
H1801 x W575 X D427mm
What are the lead times for hiring a ChargeBox?
Ideally we require four weeks' notice to secure a production slot, plan the installations and manage the vinyl wrap process effectively, however we can often react quicker when needed and we try to be as responsive as possible. We do become very busy during the summer events season so please book early to secure your production slot and avoid disappointment.
Can I install the ChargeBox 3 or will ChargeBox do this for me?
ChargeBox can provide engineers to aid installation or units can be delivered direct to site for self installation.
How do my customers find a ChargeBox?
Customers can visit our Find-A-ChargeBox interactive map via our website, or download our App (iOS only) to find a list of our permanent stations. For short hire events, we encourage clients to promote the charging facilities within their marketing material to direct visitors.
What happens if there are any issues with my ChargeBox solution?
If there are any issues with your ChargeBox, you can contact our Support Team who will be able to help resolve these. Contact details are: support@ChargeBox.com 0330 088 1568.
Can I get reports to see how much the ChargeBox was used?
ChargeBox can provide a data package if required, which would include a post-event report outlining the performance of the charging solutions provided.
