The QUBE mobile device stay and charge system

The QUBE™

Fast and dependable charging while you wait... and it looks great too!

The QUBE™ 'Stay and Charge' units alleviate stressful situations by providing:

  • Table-top charging for up to eight devices
  • Eight reinforced manufacturer charging cables
  • USB 2.0 optimised charging
  • Full colour status LEDs
  • Remote management and performance visibility
  • Options to secure to its surroundings via a hidden locking system.

The QUBE™ 'Stay and Charge'  Solution

The QUBE passenger airport phone charging solution

The QUBE™ - Overview

  • Table-top 'Stay & Charge' unit
  • Charging for phones, tablets and other USB-compatible devices
  • Eight enhanced USB cables for demanding environments
  • Faster and more compatible than wireless charging
  • LED status lighting
  • Anti-theft cable design
  • Anti-theft unit design
  • Simplest charging solution for users and clients

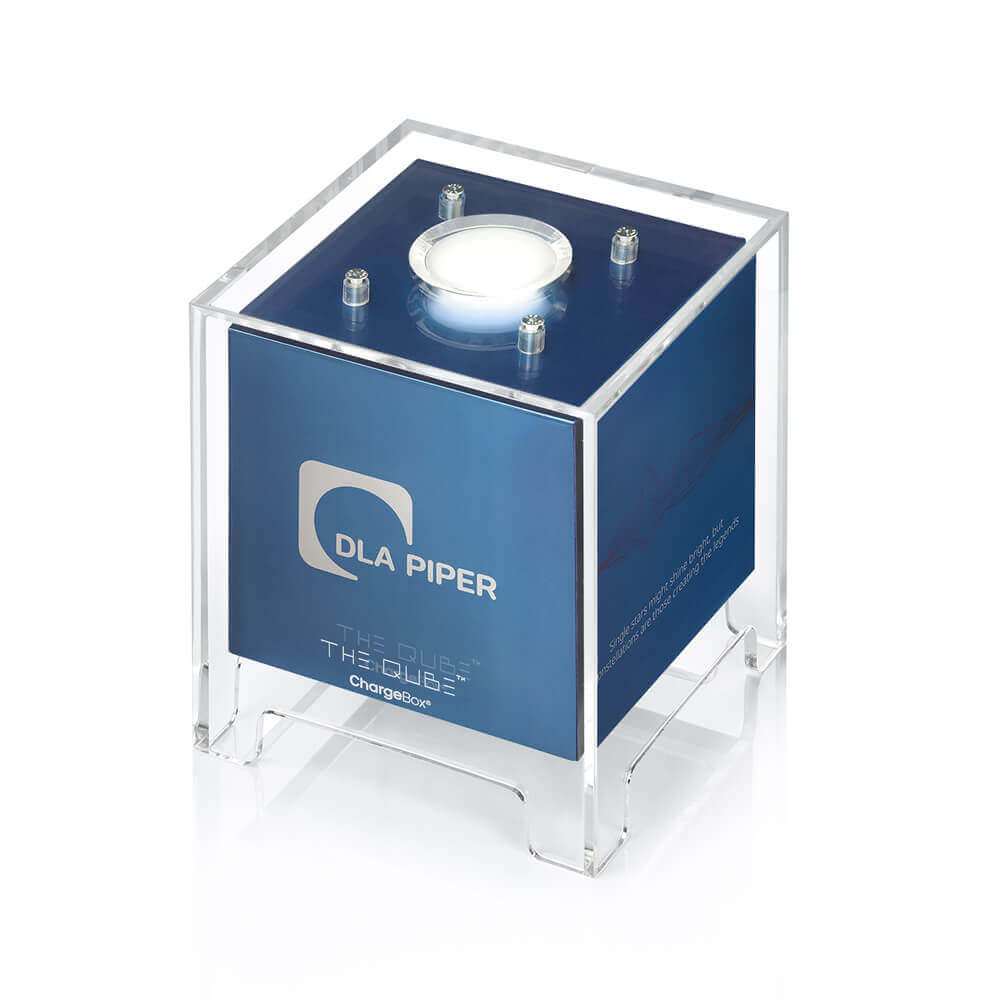

  • Branding options available
  • Real-time analytics.
The QUBE product packaging

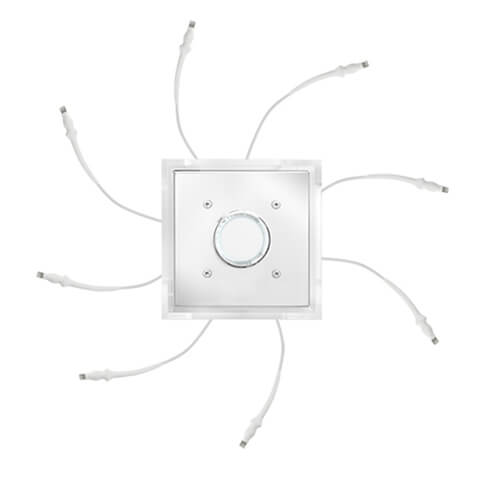

The QUBE charging multiple devices at the same time

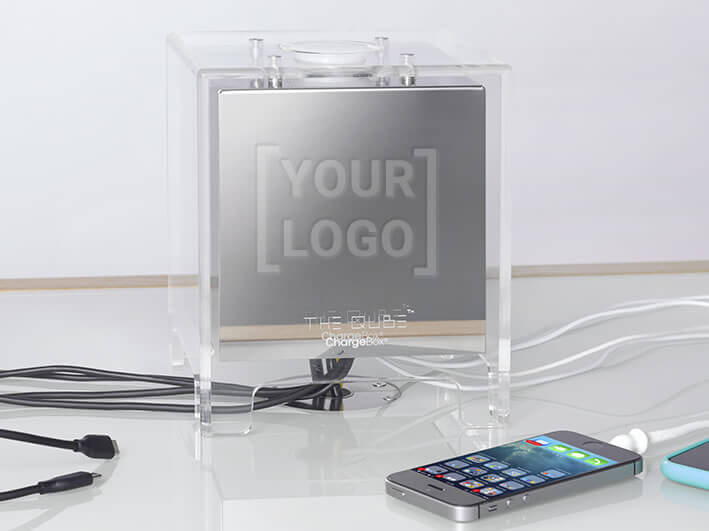

The QUBE mobile device charging
  • FEATURES
  • TECH SPEC
  • BRANDING

Specification

Detail

Options

Composition

Integrated mains-powered cube-shaped unit for indoor table-top use equipped with 8 manufacturers' cables for charging mobile devices (in accordance with USB 2.0 standard).

A K-slot cable lock can be supplied to secure the unit to a suitable strong point.

Dimensions & Weight

163(D) x 163(W) x 190mm(H)

Weight: 4Kg


Packed:

257(H) x 176(W) x 176(D) mm

Printed cardboard box and accessories box.

Electrical

This equipment is earthed through a 3-core power lead fitted with a fused 3A plug plugged in to a 110V (60Hz) or 240V (50 Hz) supply socket.


Power Usage

Idle: 2W

Typical: 20W (includes 2-3 phones charging)

Max: 80W with 8 charging cables in use charging phones or tablets

PSU is rated at 84W max.

Colour

Transparent clear acrylic outer casing. Suspended mirrored stainless steel inner casing.  Top central LED white diffuser.

Diffuser can be coloured and badged with client's logo.

Cabinet

Fabricated from 6mm clear acrylic sheet, mitred corners, adhesive joints.

Cell

User Interface

The LED ring on top of the unit flashes rotating blue when the unit is booting up. Thereafter, it switches to steady white. The only indication of correct functioning is the charging indication on the screen of a device plugged onto a charging cable.


Charging cables

Standard specification 3 Apple Lightning, 3 Anker micro USB, 2 Anker Type C

Other cables can be specified (possibly at extra cost)

Computer

64-bit quad-core ARM Cortex-A53, 1Gb memory


Connectivity

There is an RJ45 socket for a cabled ethernet connection on the Inlet plate of the unit (accessible only by the removal of the bottom base plate).

The WiFi network connection can be set up by following the configuration instructions in the Welcome Guide. WiFi standard 802.11 b/g/n are supported.

Connectivity provides on-line telemetry only in association with a Sparta licence.

Licence Fee and Software Options

The QUBE™ has embedded software which controls the charging process and captures status and usage data.  The QUBE™ will transmit the data to the ChargeBox cloud-based telemetry server (Sparta) when the unit is connected on-line (see Connectivity). The optional licence fee provides for a user-account on the Sparta telemetry system for viewing and analysing this data.


Payment

Free to use


Frequently Asked Questions

What devices can The QUBE™ charge?

What infrastructure do I need to install The QUBE™?

Can The QUBE™ be customised with my company branding?

Why do you provide a managed service for permanent installations?

Do you offer a key pad / pin system?

What happens if a customer loses their key?

Does The QUBE™ have to be inside?

What other products does ChargeBox offer?

What are the dimensions of The QUBE™?

What are the lead times for booking a ChargeBox solutions for an event?

Can I install the ChargeBox or will ChargeBox do this for me?

How do my customers find a ChargeBox?

What happens if there are any issues with my ChargeBox solution?

Can I get reports to see how much the ChargeBox was used?
